Tandwielkast 10 kW gecombineerd met tandwielpomp groep 2

✓ Tandwielkast male ✓ Pompgroep 2 ✓ Complete set

297,11 excl. btw
359,50 incl. btw
Prijs per stuk
€ 0,00
  • Klantbeoordeling 9,2/10 op Kiyoh
  • Op voorraad en vandaag besteld is vandaag verzonden
  • Vakkundige service, engineering en eigen werkplaats

Productbeschrijving

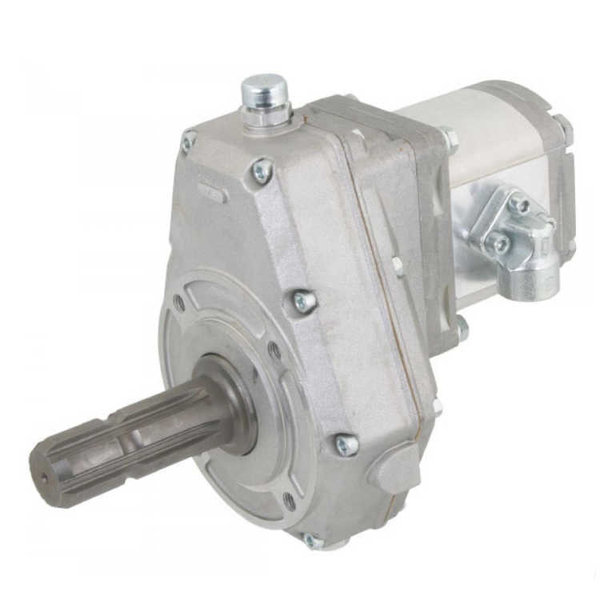

Tandwielkast 10 kW gecombineerd met tandwielpomp groep 2

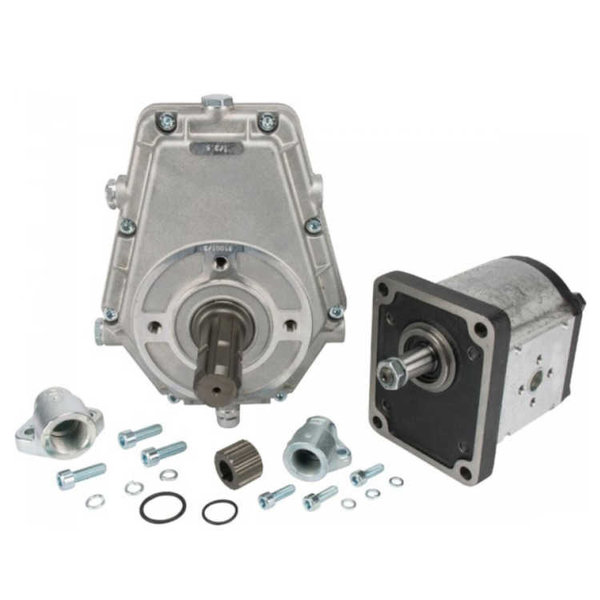

Complete set bestaande uit een 10 kW tandwielkast met male aansluiting en een Hydropack tandwielpomp naar keuze. De set wordt volledig voor gemonteerd geleverd in de uitvoering die u wenst. Let bij het in bedrijfstellen van de tandwielkast erop dat deze wordt geleverd zonder olie, deze dient apart te worden bijbesteld.


Keuze 1: Pomp grootte (cc/omw.):

Geef hier aan wat de gewenste inhoud is van de tandwielpomp die op de tandwielkast gemonteerd dient te worden.


Technische specificaties tandwielkast:

  • Type: 60001
  • Moment M1: 180 Nm
  • Moment M2: 55 Nm
  • Omwentelsnelheid N1: 540 RPM
  • Omwentelsnelheid N2: 1680 RPM
  • Ratio (Ingaand/uitgaand): 3
  • Max. ingaand vermogen: 10 kW
  • Gewicht: 5,5 Kg
  • Max. olie inhoud: 0,22 liter
  • Ingaande as: 1.3/8"-6 (standaard aftakas male)
  • Pasrand tandwielpomp: 36,4 mm (groep 2)
  • As tandwielpomp: 1/8 conisch
  • Exacte maatgeving: zie bijlage 1

Technische specificaties tandwielpomp:

  • Pompgroep: 2
  • Cc per omwenteling: 4,5-28 cc
  • Draairichting: Rechts
  • Type pomp: Tandwielpomp
  • As: Conische as 1:8
  • Flens type: E2-EN pasrand 36,5 mm, groep
  • Draad voor gemonteerde pompflenzen: 3/4" BSP
Pompinhoud (cc): Druk max. P1. (bar): Max. omwentelingen (RPM):
4,5  250       3500
6,3  250  3500
8,2  250  3500
10  250  3500
11  250  3500
12  250  3500
14  250  3500
15  250  2500
16  250  2500
19  200  2500
22  180  2000
25  160  2000
28  160  2000
