Danfoss OMM 50 cc hydraulische motor 16 mm as met zijaansluiting

✓ Zijaansluiting ✓ 50 cc ✓ 16 mm as ✓ 1/8" BSP ✓ 3/8" BSP ✓ 140 bar ✓ 20 L/min ✓ 88 Nm ✓ 400 RPM ✓ 1,8 kW

416,76 excl. btw
504,28 incl. btw
Prijs per stuk
  • Klantbeoordeling 9,2/10 op Kiyoh
  • Op voorraad en vandaag besteld is vandaag verzonden
  • Vakkundige service, engineering en eigen werkplaats

Productbeschrijving

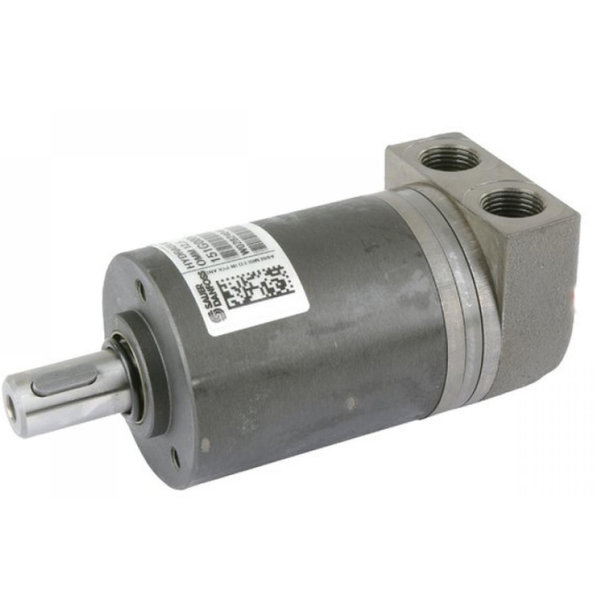

Danfoss OMM 50 cc hydraulische motor 16 mm as met zijaansluiting

Technische eigenschappen:

  • Toepassing: ventilator- en borstelaandrijvingen, transportbanden op oogstmachines
  • Toerental: laag
  • Koppel: hoog
  • Lekaansluiting: inclusief. Hierdoor motoren in serie te schakelen.
  • Combinaties: diverse flens- en as combinaties mogelijk

Technische specificaties:

  • Type: OMM
  • Orgineel nummer: 151G0013

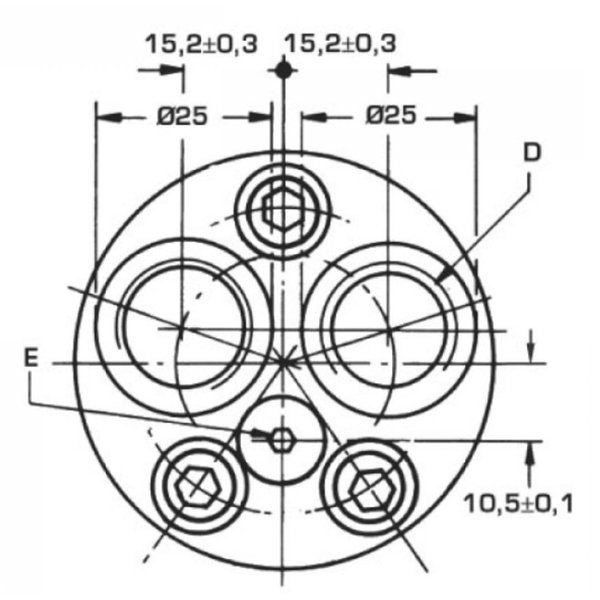

  • Aansluiting: zijaansluiting
  • Aansluiting C: 1/8" BSP
  • Aansluiting D: 3/8" BSP
  • Diameter as: 16 mm
  • Type as: recht
  • Max. capaciteit: 20 l/min
  • Nominale druk: 70 bar
  • Max. werkdruk: 140 bar
  • Piekdruk: 160 bar
  • Nominale koppel: 88 Nm

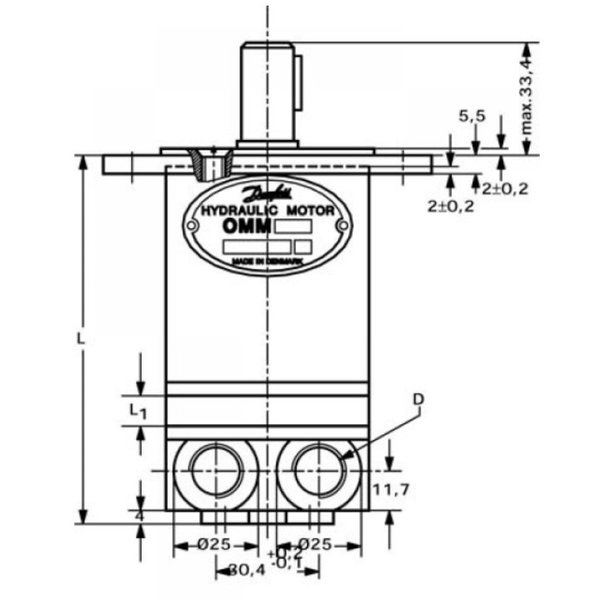

  • Afmeting L1: 21,5 mm
  • Lengte behuizing: 123,8 mm
  • Flenstype (optioneel): 2 gats flens type OMM-9 015-FL

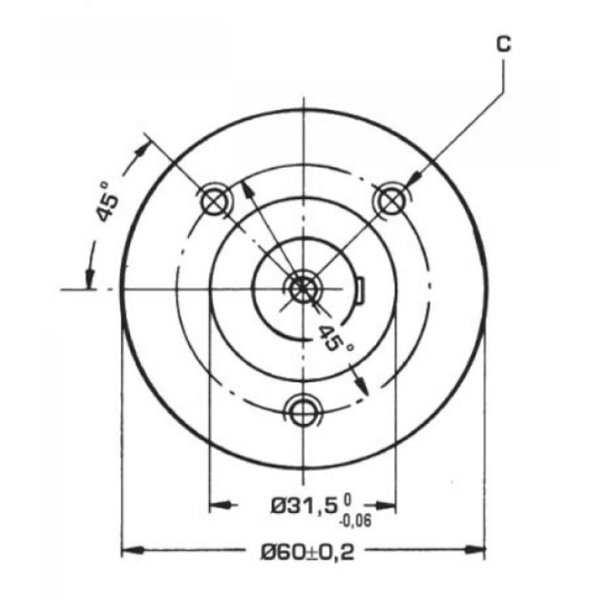

  • Motorflens: 3 gats
  • Schroefdraad E: M6
  • Slagvolume: 50 cc
  • Max. toerental: 400 RPM
  • Min. toerental: 30 RPM
  • Vermogen: 1,8 kW
  • Eenheid: per stuk
