Danfoss OMM 50 cc hydraulische motor 16 mm as

✓ 50 cc ✓ 16 mm as ✓ 1/8" BSP ✓ 3/8" BSP ✓ 140 bar ✓ 20 L/min ✓ 88 Nm ✓ 400 RPM ✓ 1,8 kW

Productvarianten: Danfoss OMM 50 cc hydraulische motor 16 mm as
Danfoss OMM 50 cc hydraulische motor 16 mm as
hydromotor mm50
331,44 excl. btw
401,04 incl. btw
Prijs per stuk

Verwachte levertijd: 2 dag(en)

€ 0,00
  • Klantbeoordeling 9,2/10 op Kiyoh
  • Op voorraad en vandaag besteld is vandaag verzonden
  • Vakkundige service, engineering en eigen werkplaats

Productbeschrijving

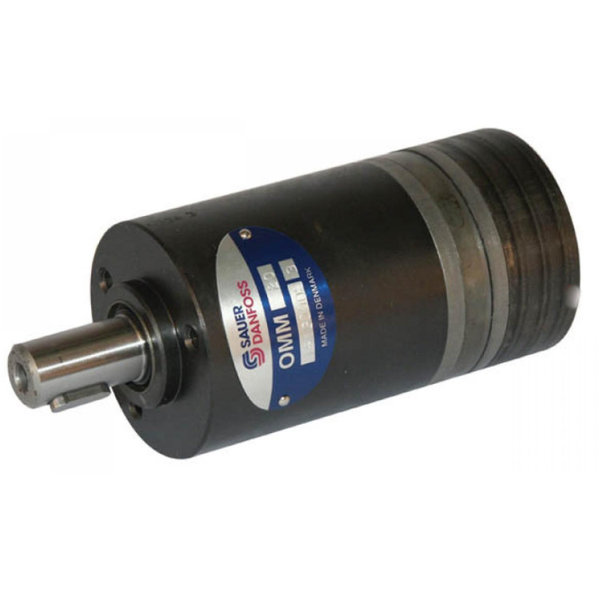

Danfoss OMM 50 cc hydraulische motor 16 mm as

Technische eigenschappen:

  • Toepassing: ventilator- en borstelaandrijvingen, transportbanden op oogstmachines
  • Toerental: laag
  • Koppel: hoog
  • Lekaansluiting: inclusief. Hierdoor motoren in serie te schakelen.
  • Combinaties: diverse flens- en as combinaties mogelijk

Technische specificaties:

  • Type: OMM
  • Orgineel nummer: 151G0037
  • Aansluiting: achteraansluiting

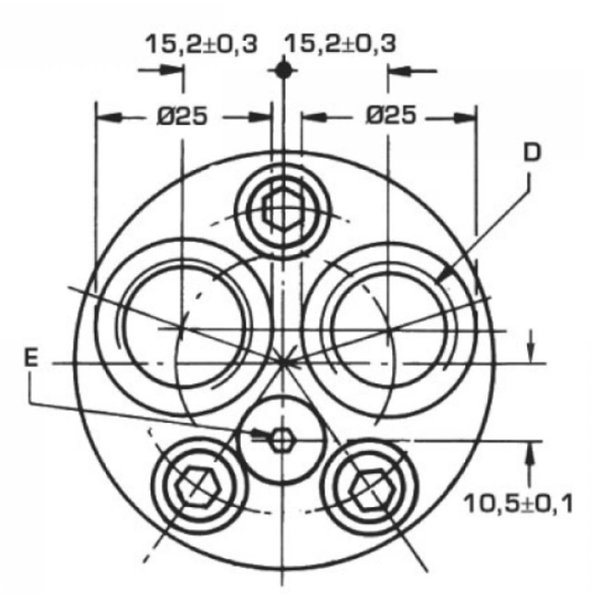

  • Aansluiting C: 1/8" BSP
  • Aansluiting D: 3/8" BSP
  • Diameter as: 16 mm
  • Type as: recht
  • Max. capaciteit: 20 l/min
  • Nominale druk: 70 bar
  • Max. werkdruk: 140 bar
  • Piekdruk: 160 bar
  • Nominale koppel: 88 Nm

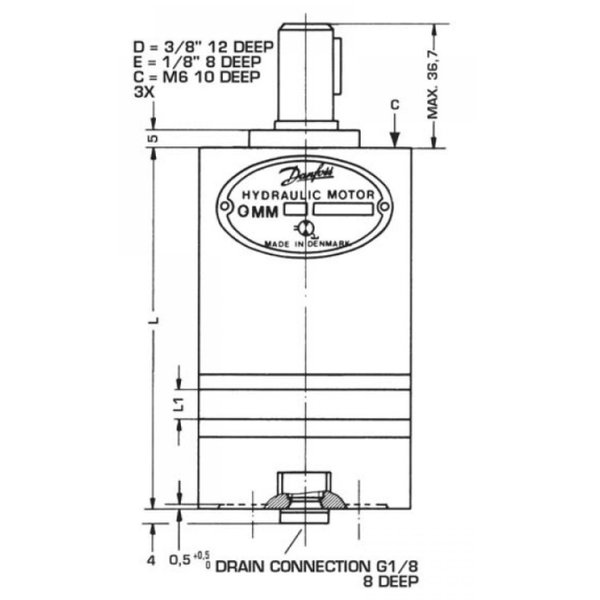

  • Afmeting L1: 21,5 mm
  • Lengte behuizing: 123,8 mm

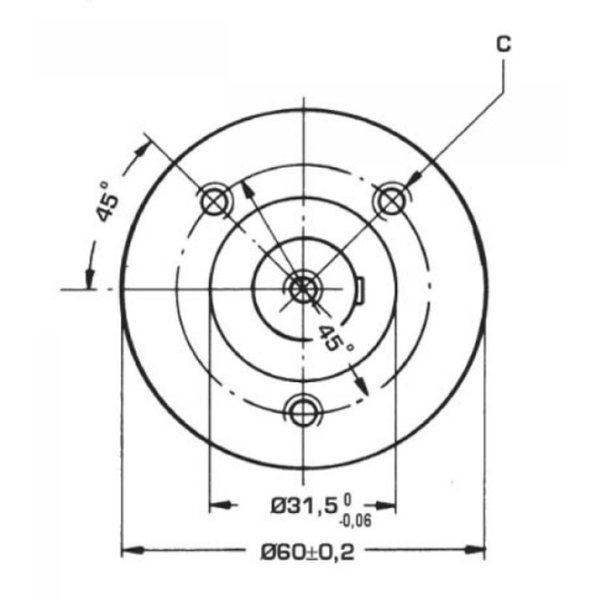

  • Flenstype (optioneel): 2 gats flens type OMM-9 015-FL
  • Motorflens: 3 gats
  • Schroefdraad E: M6
  • Slagvolume: 50 cc
  • Spie: 5 mm
  • Max. toerental: 400 RPM
  • Min. toerental: 30 RPM
  • Vermogen: 1,8 kW
  • Eenheid: per stuk
