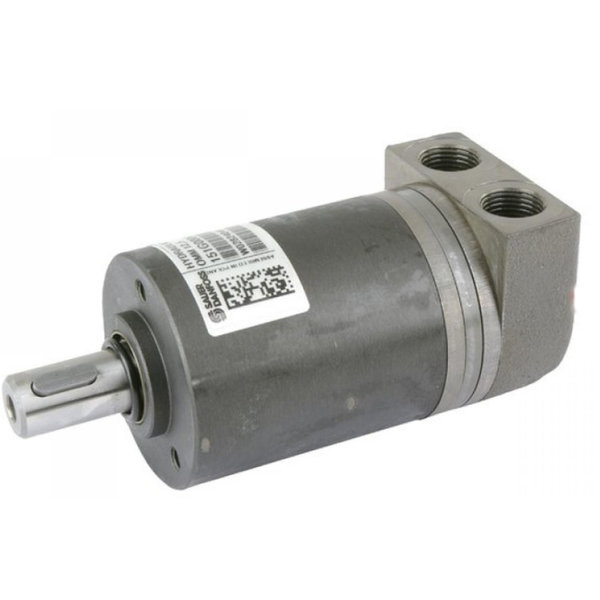

Danfoss OMM 40 cc hydraulische motor 16 mm as met zijaansluiting

✓ Zijaansluiting ✓ 40 cc ✓ 16 mm as ✓ 1/8" BSP ✓ 3/8" BSP ✓ 140 bar ✓ 20 L/min ✓ 45 Nm ✓ 500 RPM ✓ 2,2 kW

292,55 excl. btw
353,99 incl. btw
Prijs per stuk

Verwachte levertijd: 2 dag(en)

€ 0,00
  • Klantbeoordeling 9,2/10 op Kiyoh
  • Op voorraad en vandaag besteld is vandaag verzonden
  • Vakkundige service, engineering en eigen werkplaats

Productbeschrijving

Danfoss OMM 40 cc hydraulische motor 16 mm as met zijaansluiting

Technische eigenschappen:

  • Toepassing: ventilator- en borstelaandrijvingen, transportbanden op oogstmachines
  • Toerental: laag
  • Koppel: hoog
  • Lekaansluiting: inclusief. Hierdoor motoren in serie te schakelen.
  • Combinaties: diverse flens- en as combinaties mogelijk

Technische specificaties:

  • Type: OMM
  • Orgineel nummer: 151G0279
  • Aansluiting: zijaansluiting
  • Aansluiting C: 1/8" BSP
  • Aansluiting D: 3/8" BSP
  • Diameter as: 16 mm
  • Type as: recht
  • Max. capaciteit: 20 l/min
  • Nominale druk: 90 bar
  • Max. werkdruk: 140 bar
  • Piekdruk: 160 bar
  • Nominale koppel: 45 Nm
  • Afmeting L1: 17 mm
  • Lengte behuizing: 118 mm
  • Flenstype (optioneel): 2 gats flens type OMM-9 015-FL
  • Motorflens: 3 gats
  • Schroefdraad E: M6
  • Slagvolume: 40 cc
  • Max. toerental: 500 RPM
  • Min. toerental: 30 RPM
  • Vermogen: 2,2 kW
  • Eenheid: per stuk
