Danfoss OMM 40 cc hydraulische motor 16 mm as

✓ 40 cc ✓ 16 mm as ✓ 1/8" BSP ✓ 3/8" BSP ✓ 140 bar ✓ 20 L/min ✓ 45 Nm ✓ 500 RPM ✓ 2,2 kW

Productvarianten: Danfoss OMM 40 cc hydraulische motor 16 mm as
Danfoss OMM 40 cc hydraulische motor 16 mm as
hydromotor mm40
253,42 excl. btw
306,64 incl. btw
Prijs per stuk

Verwachte levertijd: 2 dag(en)

€ 0,00
  • Klantbeoordeling 9,2/10 op Kiyoh
  • Op voorraad en vandaag besteld is vandaag verzonden
  • Vakkundige service, engineering en eigen werkplaats

Productbeschrijving

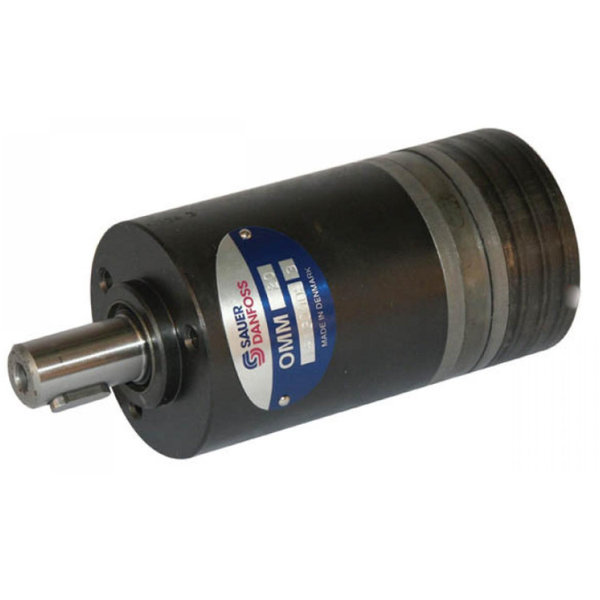

Danfoss OMM 40 cc hydraulische motor 16 mm as

Technische eigenschappen:

  • Toepassing: ventilator- en borstelaandrijvingen, transportbanden op oogstmachines
  • Toerental: laag
  • Koppel: hoog
  • Lekaansluiting: inclusief. Hierdoor motoren in serie te schakelen.
  • Combinaties: diverse flens- en as combinaties mogelijk

Technische specificaties:

  • Type: OMM
  • Orgineel nummer: 151G0277

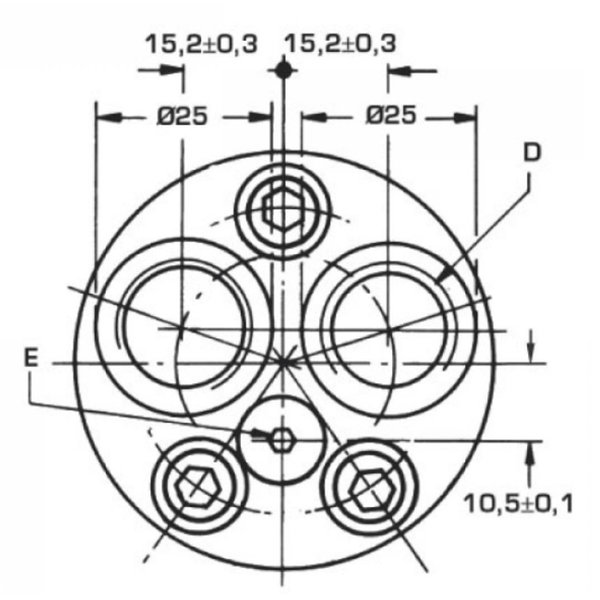

  • Aansluiting: achteraansluiting
  • Aansluiting C: 1/8" BSP
  • Aansluiting D: 3/8" BSP
  • Diameter as: 16 mm
  • Type as: recht
  • Max. capaciteit: 20 l/min
  • Nominale druk: 90 bar
  • Max. werkdruk: 140 bar
  • Piekdruk: 160 bar
  • Nominale koppel: 45 Nm

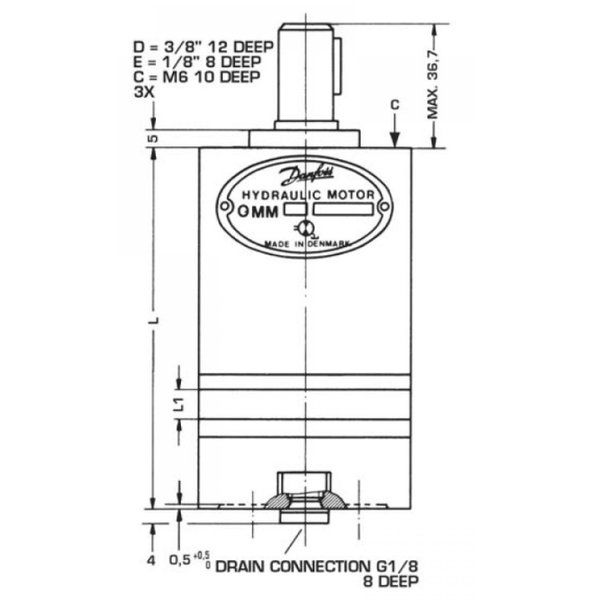

  • Afmeting L1: 17 mm
  • Lengte behuizing: 118 mm

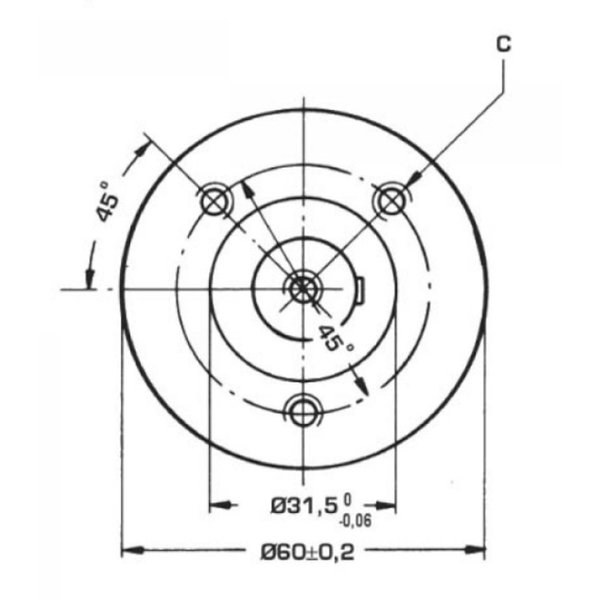

  • Flenstype (optioneel): 2 gats flens type OMM-9 015-FL
  • Motorflens: 3 gats
  • Schroefdraad E: M6
  • Slagvolume: 40 cc
  • Spie: 5 mm
  • Max. toerental: 500 RPM
  • Min. toerental: 30 RPM
  • Vermogen: 2,2 kW
  • Eenheid: per stuk
