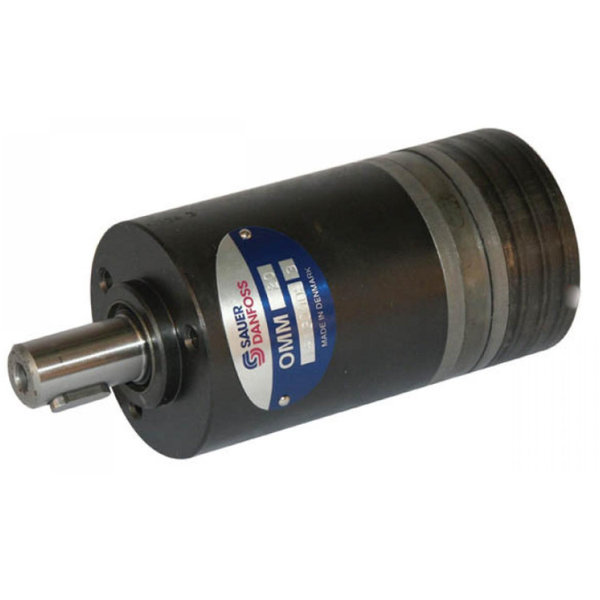

Danfoss OMM 20 cc hydraulische motor 16 mm as

✓ 20 cc ✓ 16 mm as ✓ 1/8" BSP ✓ 3/8" BSP ✓ 140 bar ✓ 20 L/min ✓ 25 Nm ✓ 1000 RPM ✓ 2,4 kW

Productvarianten: Danfoss OMM 20 cc hydraulische motor 16 mm as
Danfoss OMM 20 cc hydraulische motor 16 mm as
hydromotor mm20
299,06 excl. btw
361,86 incl. btw
Prijs per stuk

Verwachte levertijd: 2 dag(en)

€ 0,00
  • Klantbeoordeling 9,2/10 op Kiyoh
  • Op voorraad en vandaag besteld is vandaag verzonden
  • Vakkundige service, engineering en eigen werkplaats

Productbeschrijving

Danfoss OMM 20 cc hydraulische motor 16 mm as

Technische eigenschappen:

  • Toepassing: ventilator- en borstelaandrijvingen, transportbanden op oogstmachines
  • Toerental: laag
  • Koppel: hoog
  • Lekaansluiting: inclusief. Hierdoor motoren in serie te schakelen.
  • Combinaties: diverse flens- en as combinaties mogelijk

Technische specificaties:

  • Type: OMM
  • Orgineel nummer: 151G0002
  • Aansluiting: achteraansluiting

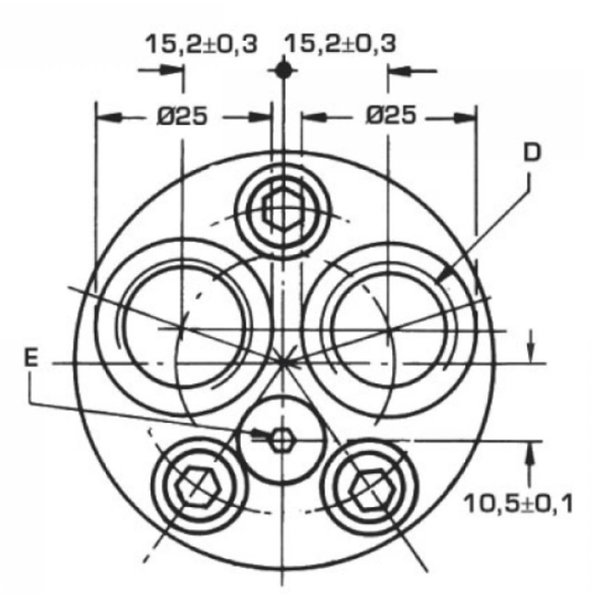

  • Aansluiting C: 1/8" BSP
  • Aansluiting D: 3/8" BSP
  • Diameter as: 16 mm
  • Type as: recht
  • Max. capaciteit: 20 l/min
  • Nominale druk: 100 bar
  • Max. werkdruk: 140 bar
  • Piekdruk: 200 bar
  • Nominale koppel: 25 Nm

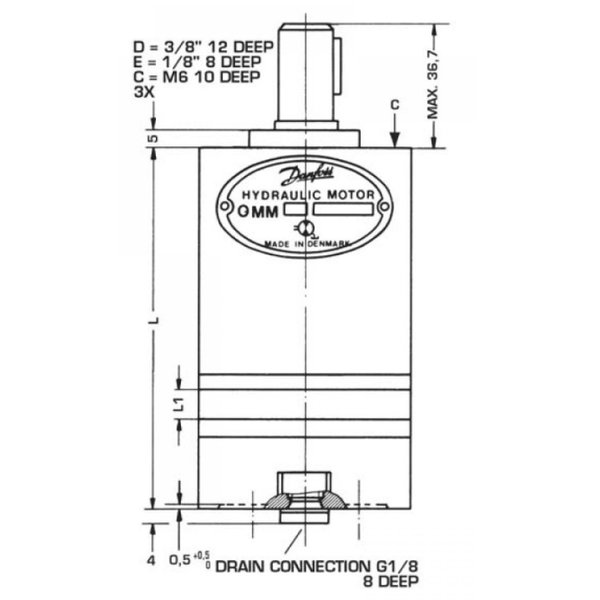

  • Afmeting L1: 8,5 mm
  • Lengte behuizing: 112,5 mm
  • Flenstype (optioneel): 2 gats flens type OMM-9 015-FL
  • Motorflens: 3 gats

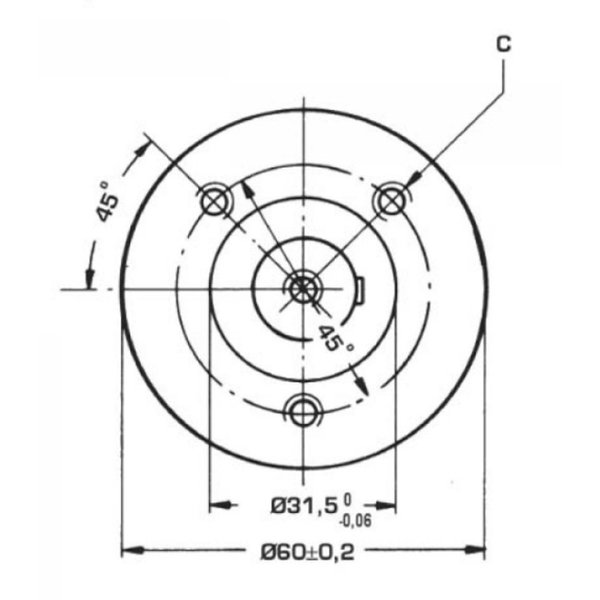

  • Schroefdraad E: M6
  • Slagvolume: 19,9 cc
  • Spie: 5 mm
  • Max. toerental: 1000 RPM
  • Min. toerental: 30 RPM
  • Vermogen: 2,4 kW
  • Eenheid: per stuk
